Chinese wholesale Pick Brazing For Rb777 Air Pick - High strength B87C Air pick for concrete and rock crushing work – Shenglida Detail:

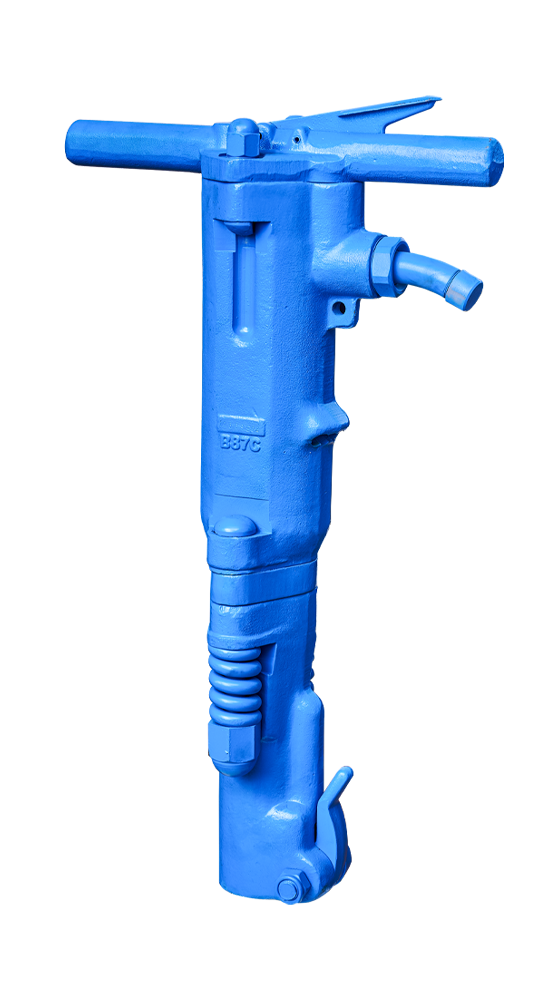

B87C AIR PICK

B87C pneumatic crusher, which is a breaking tool powered by compressed air, adopts the mature technology of Gardner Denver
Industrials Group. It can efficiently complete the crushing work on reinforced concrete, rock, asphalt, etc.

It is featured with light weight, good durability , fast speed and high efficiency. It is an ideal tool for urgent repair and demolition in the
construction of mine, bridge, roadway, water and electricity networks.etc.

The ideal tool for foundation construction

B87C Handheld Jack Hammer Rock Breaker Hammer


LEARN MORE

pneumatic breakers tpb60 tpb90 tpb40 TCA7 tcd20 B87C

Parameter/name tca-7 tcd-20 rb777 tpb-40 tpb-60 tpb-90
Piston diameter 35mm 42.85 57mm 44mm 57.15mm 66.67mm
Piston stroke 120mm 60mm 189mm 146mm 100mm 152mm
Percussive frequency 1250 B.P.M 2000 B.P.M 18.3 Hz 1050 B.P.M 1400 B.P.M 1400 B.P.M
N.W 7.2kg 10kg 37kg 18kg 30kg 42kg
Length 465MM 520MM 733MM 660MM 645MM 723MM
Air consumption 1.0m³/min 1.1 m³/min 0.63Mpa 1.6 m³/min 2.0 m³/min 2.2 m³/min
Tracheal diameter 19 19 19 19 19 19
bit head size R26*80 R26*80 R32*152 R25*108 R32*152 R32*152

FAMOUS BRANDS

未标题-2 拷贝

SOLD WORLDWIDE

IDEAL CRUSHING TOOLS

V

S

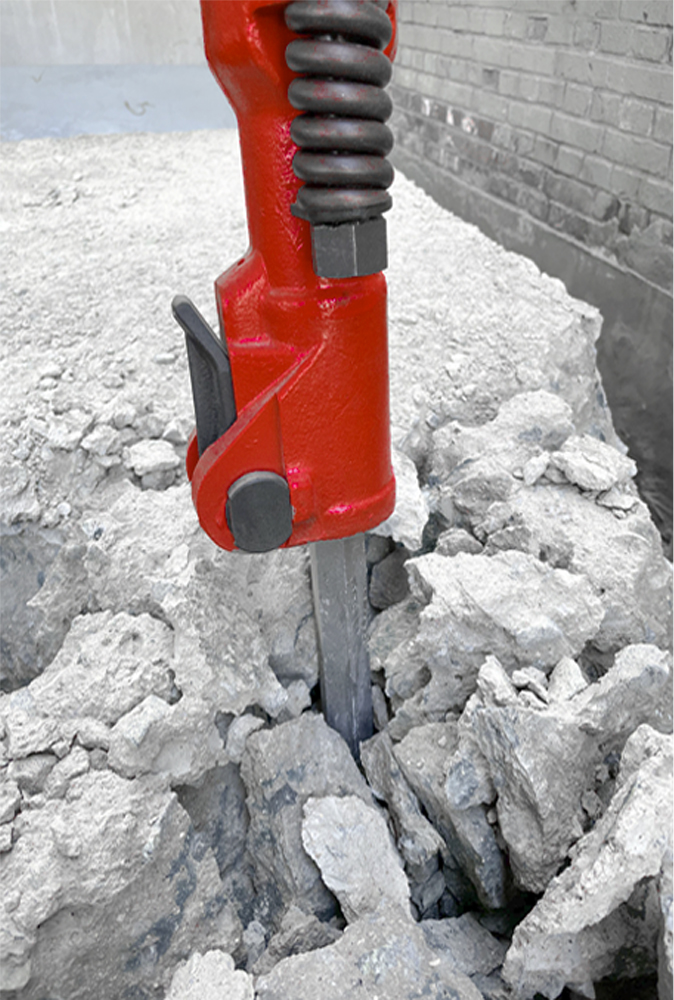

TPB-60 Air pick Before crushing vs after crushing

ROCK DRILL HAMMER

BEFORE BREAKLNG

   TPB-60

Compressed air-powered crushing tools can efficiently complete the crushing work of reinforced concrete, rock, etc.

other pneumatic tools

BROKEN IN PIECES

AIR PICK

Is the mine, bridge dyeing, road, municipal construction The ideal tool for the construction of base boron projects

pneumatic hammers

AFTER BREAKAGE

SHENLI

Especially suitable for for extra large. Extra thick. Crushing of extra hard objects

OUR ADVANTAGES

Safe and reliable

Shenli pay attention to the details of the user experience for the majority of customers to provide the most perfect quality assurance

High quality material

The products are forged with super hard steel, quality first, customer first. Innovation and quality oriented Strive to be the pioneer of the industry!

One machine for multiple uses

Especially suitable for oversized. Extra thick. It is an ideal tool for the construction of mining, bridge dyeing, road and municipal infrastructure projects.

Easy inspection and repair

Product horsepower, higher efficiency, longer life, easy access, universal accessories

Powerful power

Crushing tools powered by compressed air, can efficiently complete the crushing work of reinforced concrete, rock, etc.

Factory direct sales

The company introduces the technology of foreign production enterprises such as Epiroc and Furukawa of Japan. We have become a large scale and high reputation pneumatic mining machinery manufacturer in China.

MORE OPTIONS

CHINA FAMOUS BRAND,TRUSTWORTHY PRODUCTS

未标题-2 拷贝

TCA-7

TPB-40

TPB-60

TPB-90

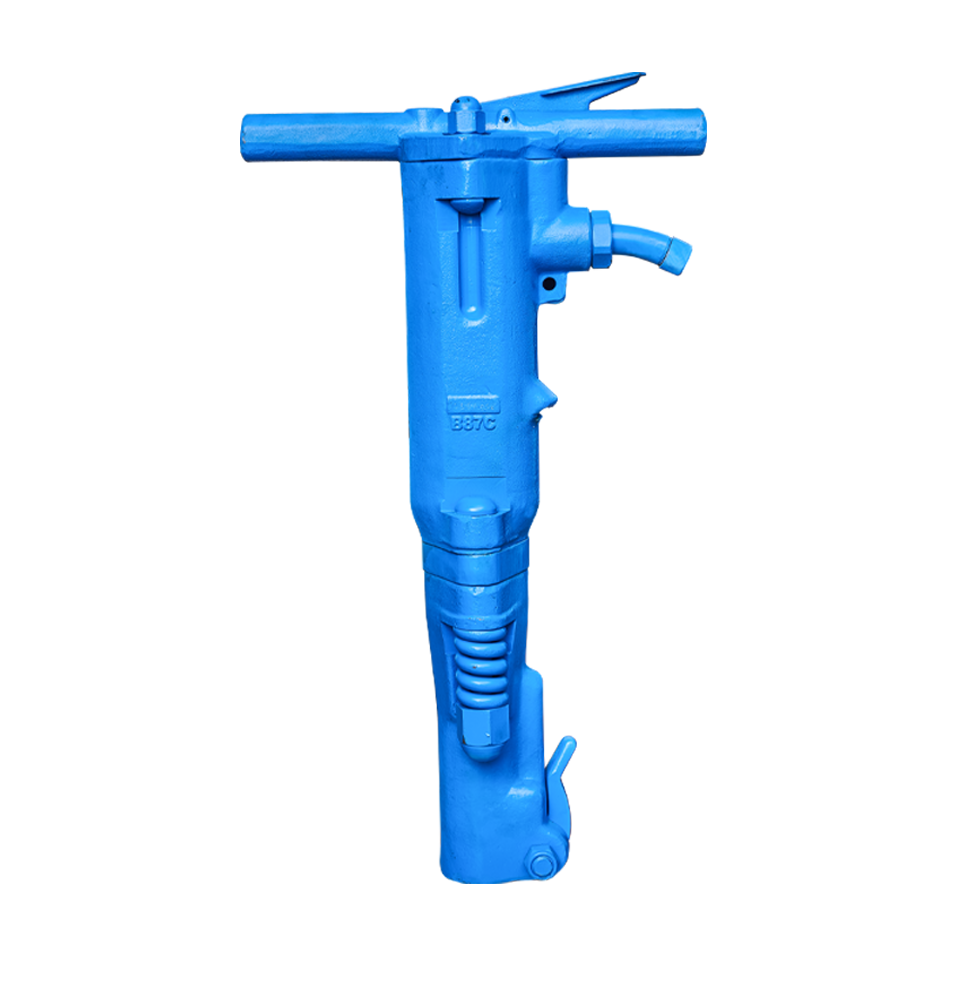

B87C AIR PICK

Breaking tools

B87C crusher adopts the mature technology of American Canaday-Denver Pneumatic Group, which is a crushing tool powered by compressed air.The crusher has a compact structure, good machine rigidity, high chrome plate hammer, anti-impact, anti-wear, high impact force



NO.1>

pneumatic breakers tpb60 tpb90 tpb40 TCA7  B87C
pneumatic breakers tpb40 tpb60 tpb90 B87C

B87C AIR PICK

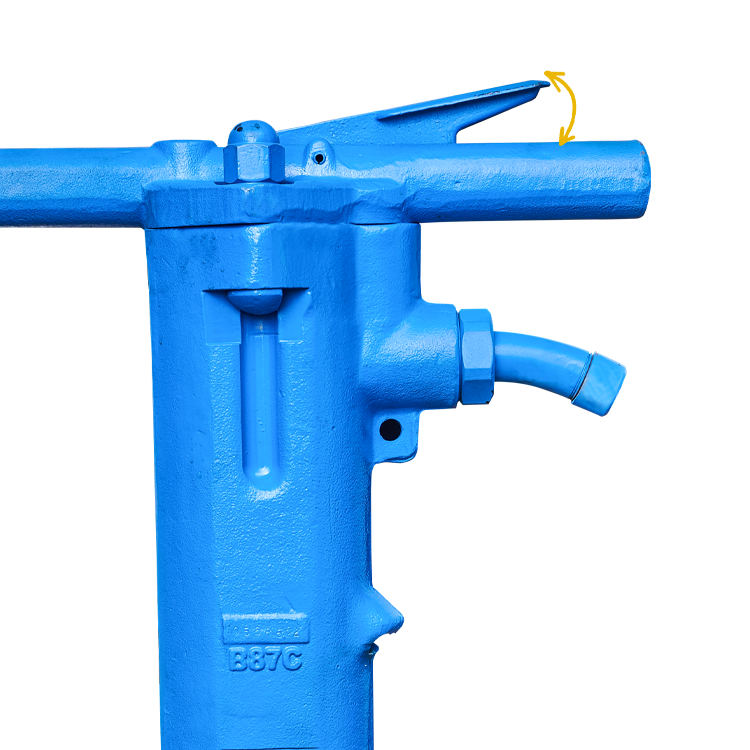

Details show – Trigger

Press the trigger, the crusher starts to work, the trigger greatly improves the safety of the product work.



<NO.2

B87C AIR PICK

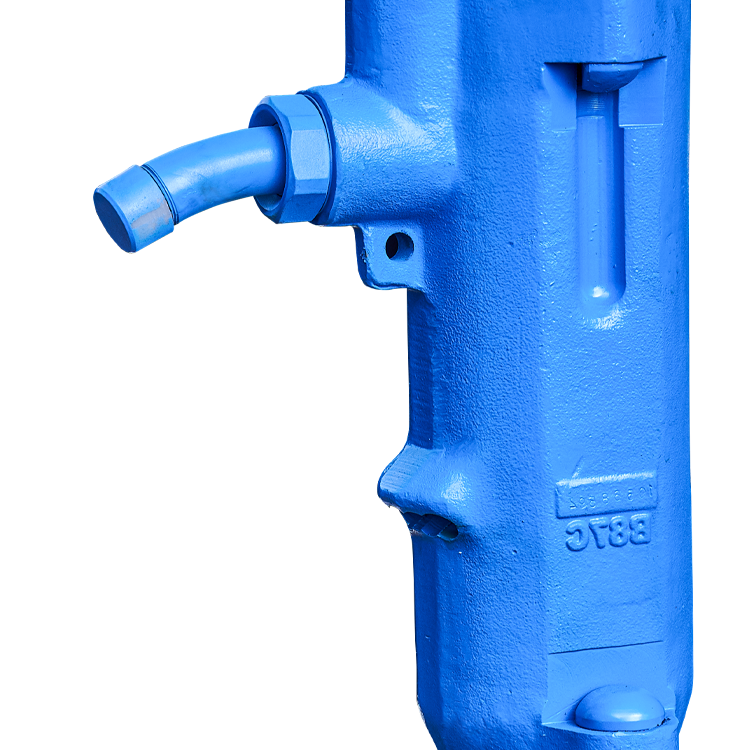

Details show-Air Connection Tube

B87C crusher has large feed opening, high crushing cavity, high hardness and large size of material, low powder.



NO.3>

pneumatic breakers tpb60 tpb90 tpb40 B87C
pneumatic breakers tpb40 tpb90 tpb60

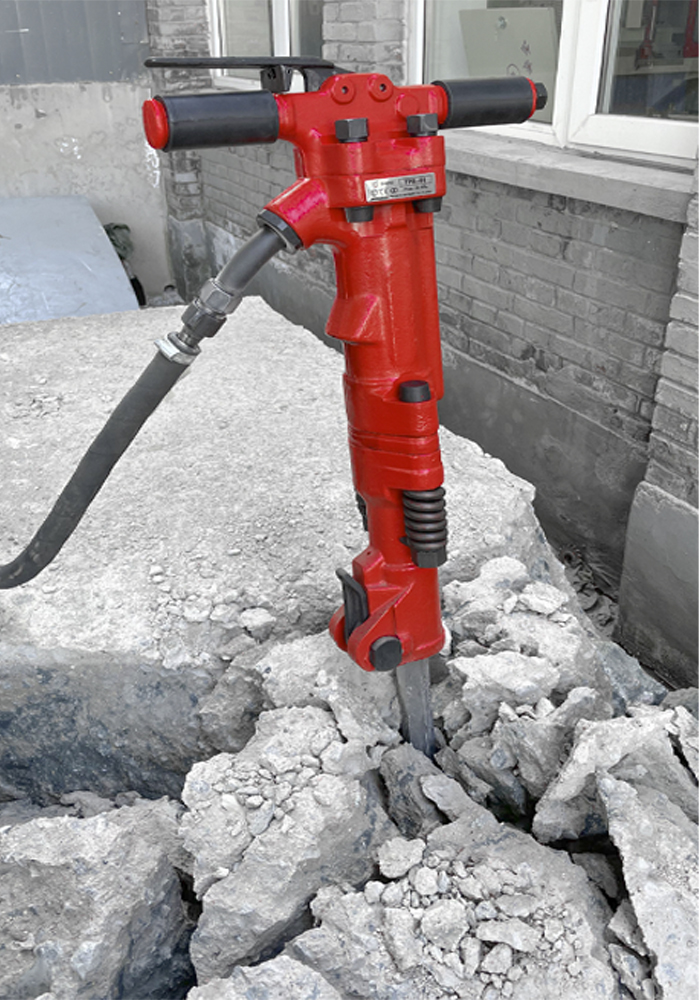

TPB-60 AIR PICK

Details show – test

With more horsepower and higher efficiency – longer life, especially suitable for for extra large. Extra thick. Crushing of extra hard objects



<NO.4

TPB-60 AIR PICK

Details show -Powerful

Crusher compact structure, good machine rigidity, impact resistance, anti-wear, impact force, is the ideal tool for mining, bridge dyeing, road, municipal construction and other base boron project construction.



NO.5>

pneumatic air jack tpb60 tpb90 tpb40
mining machine parts tpb40 tpb60 tpb90

B87C AIR PICK

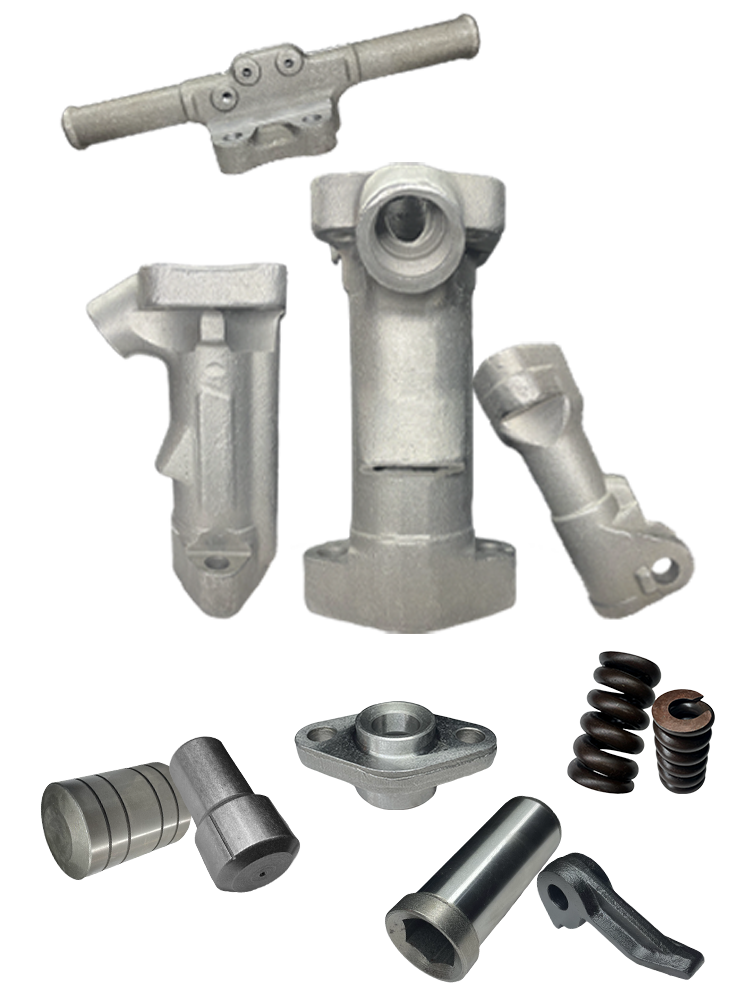

Details show – Spare parts

TPB-90 part of the accessories show, international common parts, factory direct sales



<NO.6

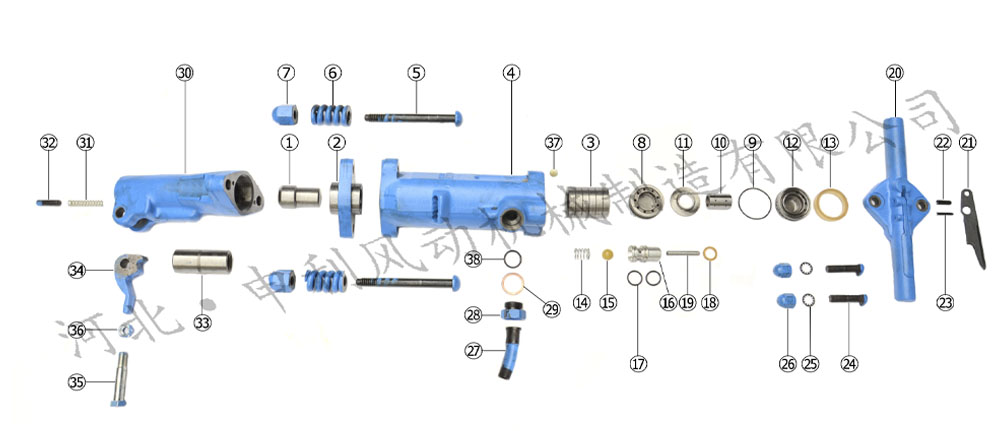

air hammer TPB90 TPB60 TPB40 TCA7 TCD20 B87C

Delivery for :

Express delivery

For the Goods’ Value lower than USD1000 Like 1set or 2 set. We need send it to you by Express.Please tell us your city and postcode for the courier cost.



Time

Delivery by sea: After it was delivered to the seaport . We will tell you the shipping time and arrival time .

Sea Freight

For the Goods’ Value more than USD 1000.Like ≥3 set. We could send it to you by sea. Please tell us your seaport for the Freight cost,In addition, we can also help you consult the shipping price

Air Freight

Delivery by Express to your door (DHL/TNT/Fedex/UPS etc ) or by air to your city airport . We will tell you the Express tracking number .

Freight Forwarding

If you have shipping agent in china. please let your agent contact us.



Services

Deliver it to the warehouse which you have requested . We will tell you logistic or express tracking number .

FAQ:

1. : Are you factory or trade company?
A: We are factory. And we have ourselves trading company.2: Warranty terms of your machine?
A: 3 months for the core components and technical support according to your needs.3: Will you provide some spare parts of the machines?
A: Yes, we have most of the spare parts in stock.

4: Which payment term can you accept?
A: 30% T/T in advanced, 70% T/T before the delivery.

5: Can you accept OEM orders?
A: Yes, we have high specialized and rich experienced team, OEM orders are highly welcome.

6: Which trade term can you accept?
A: FOB, CIF, CFR, EXW, CPT, etc.
