Hand held rock drill Y24 pneumatic air pick

Short Description:

Y24 hand-held rock drill is a variant of YT24 air-leg rock drill in our factory. It has the advanced level in China and was rated as the high quality product in 1987. It is suitable for second blasting and downward drilling in foreign quarries. It not only maintains the excellent performance of YT24 rock drill, but also enhances the ability of blowing and cleaning the hole. Therefore, it is more suitable for drilling downward gun holes.


  • Model: Y24
  • N.W.: 24kg
  • Length: 604mm
  • Bit Head Size: R22×108mm
  • Air Consumption: ≤55 L/S
  • Percussive Frequency: ≥27 Hz
  • Boreholes Diameter: 34-42mm
  • Piston Diameter: 70mm
  • Piston Stroke: 70mm
  • Drilled Holes Depth: 5m
  • Air Inlet Size: 19mm
  • Working Pressure: 0.4-0.5 Mpa
  • Impact energy: 44.7 J
  • Working Water Pressure: 0.2-0.3Mpa
  • Inner diameter of water pipe: 13mm
    • Download as PDF

    Product Detail

    rock drill

    Product Tags

    Hand held rock drill

    rock drill bit China supplier

    Y24 Hand held rock drill

    This Series pneumatic rock drill apply in hard rock on the rock drill operation,it has strong adaptability to the working conditions.The product is energy efficiency, Its components has long life and durable.The machice can be generally used with the same type,it can greatly reduce the customer loss for spare part replacement.

    Quality
    %
    .HAND HELD ROCK DRILL Y26 Y19A TY24C Y24 Y018 Y20LY
    HAND HELD ROCK DRILL SPECIFICATION
    TYPE
    Y20LY
    Y24
    Y26
    Y28
    TY24C
    WEIGHT(KG)
    18
    23
    26
    25
    23
    SHANK SIZE(MM)
    22*108
    22*108
    22*108
    22*108
    22*108
    CYLINDER DIA(MM)
    65
    70
    75
    80
    67
    PISTON STROKE(MM)
    60
    70
    70
    60
    70
    WORKING PRESSURE(MPA)
    0.4
    0.4-0.63
    0.4-0.63
    0.4-0.5
    0.4-0.63
    IMPACT FREQUENCY(HZ)
    28
    28
    28
    28
    28
    AIR CONSUMPTION
    25
    55
    47
    75
    55
    AIR PIPE INNER DIA(MM)
    19
    19
    19
    19
    19
    ROCK DRILL HOLE DIA(MM)
    30-45
    30-45
    30-45
    30-45
    30-45
    ROCK DRILL HOLE DEPTH(M)
    3
    6
    5
    6
    6
    未标题-2 拷贝

    Detailed introduction

    .HAND HELD ROCK DRILL Y26 Y19A TY24C Y24 Y018 Y20LY Y018

    Y24 Hand held rock drill

    Y24 rock drill is widely used for dry drilling in the medium-hard and hard rock(f=8-18). It’s suitable for drilling works in surface mine, quarry for boulder blasting and other dry drilling working.FY200B oil reservior is matched with this rock drill to ensure the fine lubrication.

    Y24
    HAND HELD ROCK DRILL Y26 Y19 TY24C Y24 Y20LY Y018

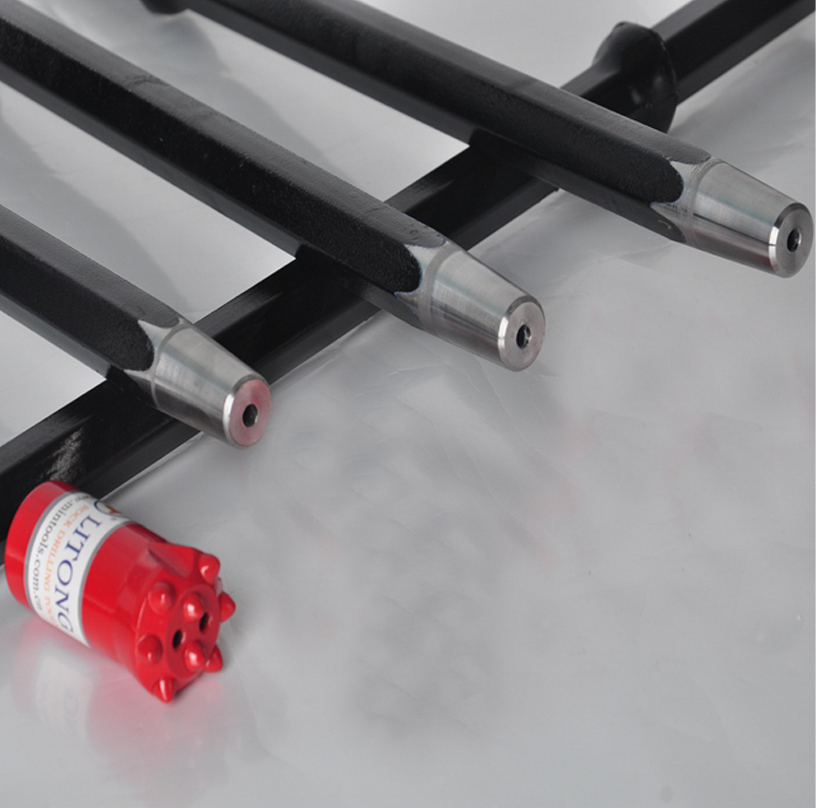

    Y24 Hand held rock drill Tapered drill rod

    Tapered drill rod,another name called taper rod, tapered drill steels, This provides a hexagonal chuck section to provide leverage for the rotation chuck bushing. It usually has a forged collar to maintain the proper shank striking face position in the rock drill, and a tapered bit end. Tapered steel lengths available from 0.6 mto 3.6 m in length—are measured from the collar to the bit end

    Tapered drill rod

    DETAIL VIEW

    .HAND HELD ROCK DRILL Y26 Y19 TY24C Y24 Y018 Y20LY
    .HAND HELD ROCK DRILL Y26 Y19 TY24C Y24 Y018 Y018 Y20LY
    .HAND HELD ROCK DRILL Y26 Y19 TY24C Y24 Y018 Y20LY Y018
    rock drill yt29a yt28 yt27 s250 y26 y19a ty24c Air-leg Oil feeder Drill stem Aiguille Bit head
