TPB-40 pneumatic broken pick is a tool powered by compressed air
1. All parts of machine are made of alloy steel, and have great durability.
2. Back head is fixed by four bolts, and can endure the extremely hard condition
3. Quick reblading-type gripper, easy changing chisel, Hex. Shank
4. It is used to break or excavate the asphalt.
The ideal tool for foundation construction

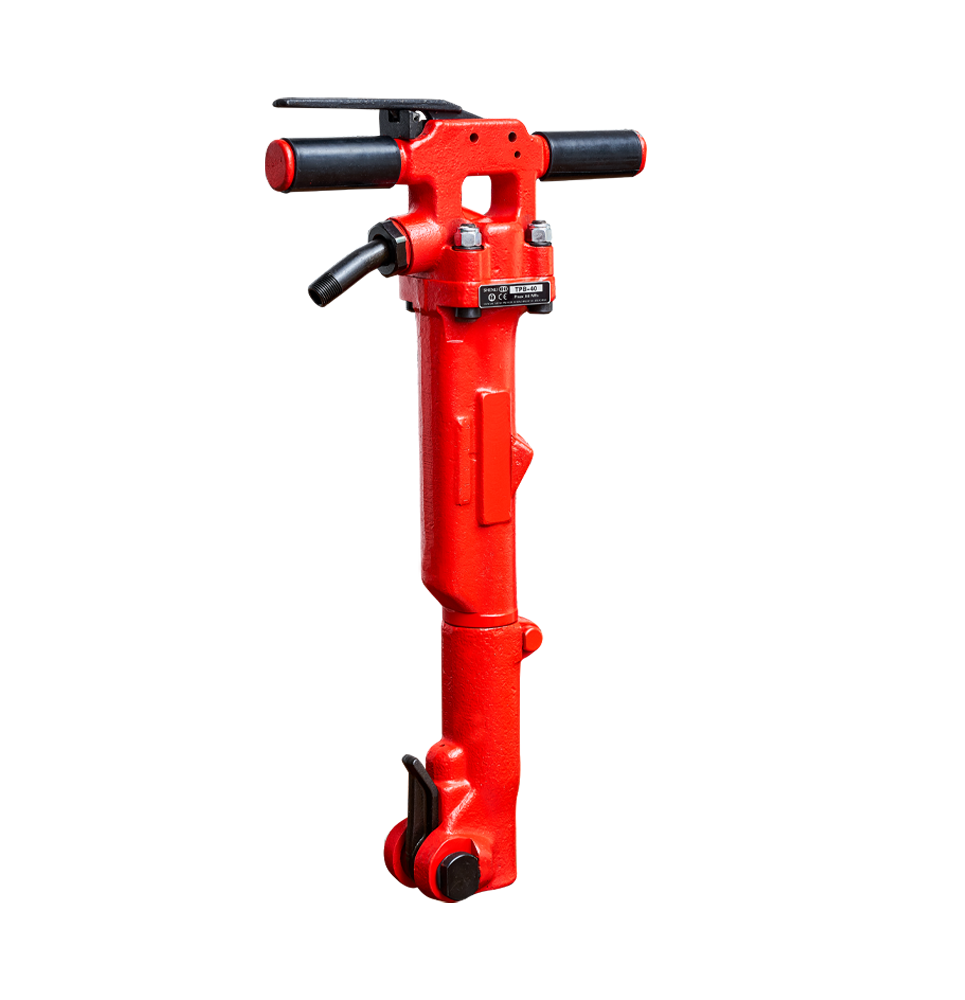

TPB-40 Handheld Jack Hammer Rock Breaker Hammer
Parameter/name | tca-7 | tcd-20 | rb777 | tpb-40 | tpb-60 | tpb-90 |
Piston diameter | 35mm | 42.85 | 57mm | 44mm | 57.15mm | 66.67mm |
Piston stroke | 120mm | 60mm | 189mm | 146mm | 100mm | 152mm |
Percussive frequency | 1250 B.P.M | 2000 B.P.M | 18.3 Hz | 1050 B.P.M | 1400 B.P.M | 1400 B.P.M |
N.W | 7.2kg | 10kg | 37kg | 18kg | 30kg | 42kg |
Length | 465MM | 520MM | 733MM | 660MM | 645MM | 723MM |
Air consumption | 1.0m³/min | 1.1 m³/min | 0.63Mpa | 1.6 m³/min | 2.0 m³/min | 2.2 m³/min |
Tracheal diameter | 19 | 19 | 19 | 19 | 19 | 19 |
bit head size | R26*80 | R26*80 | R32*152 | R25*108 | R32*152 | R32*152 |
TPB-60
Compressed air-powered crushing tools can efficiently complete the crushing work of reinforced concrete, rock, etc.
AIR PICK
Is the mine, bridge dyeing, road, municipal construction The ideal tool for the construction of base boron projects
SHENLI
Especially suitable for for extra large. Extra thick. Crushing of extra hard objects
Shenli pay attention to the details of the user experience for the majority of customers to provide the most perfect quality assurance
The products are forged with super hard steel, quality first, customer first. Innovation and quality oriented Strive to be the pioneer of the industry!
Especially suitable for oversized. Extra thick. It is an ideal tool for the construction of mining, bridge dyeing, road and municipal infrastructure projects.
Product horsepower, higher efficiency, longer life, easy access, universal accessories
Crushing tools powered by compressed air, can efficiently complete the crushing work of reinforced concrete, rock, etc.
The company introduces the technology of foreign production enterprises such as Epiroc and Furukawa of Japan. We have become a large scale and high reputation pneumatic mining machinery manufacturer in China.
TPB-40 wind pick is a kind of crushing tool powered by compressed air, compressed air is distributed to both ends of the street body by the felling wheel, so that the hammer body for reciprocating motion, Shenli machinery to build quality products
NO.1>

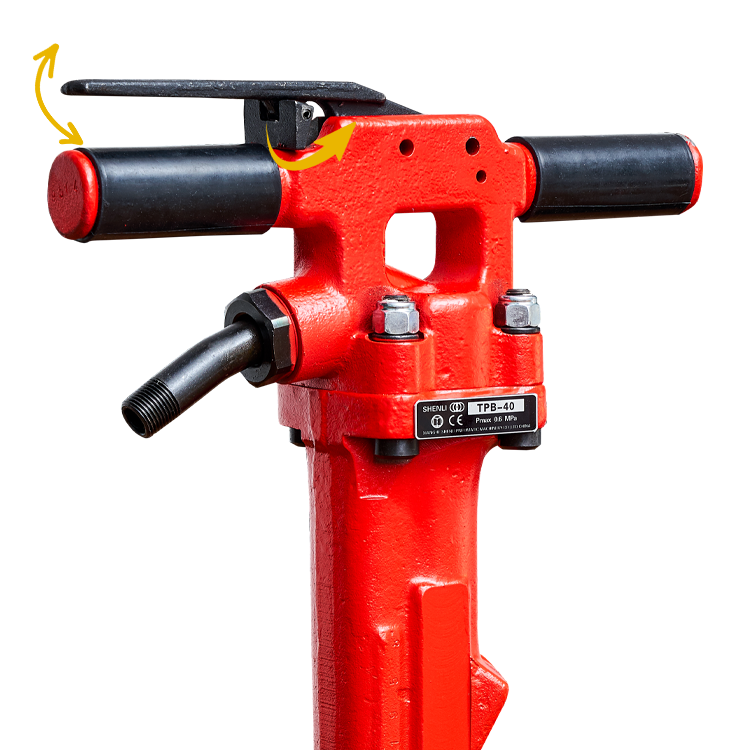

There is a trigger switch below the press handle, push the trigger, press the handle, the crusher begins to work, the trigger greatly improves the product work safety factor
<NO.2
TPB-40 crusher with large air intake, impacting the end of the steel brazier, saving the steel needle into the concrete layer, making it split into pieces
NO.3>
With more horsepower and higher efficiency – longer life, especially suitable for for extra large. Extra thick. Crushing of extra hard objects
<NO.4
Crusher compact structure, good machine rigidity, impact resistance, anti-wear, impact force, is the ideal tool for mining, bridge dyeing, road, municipal construction and other base boron project construction.
NO.5>

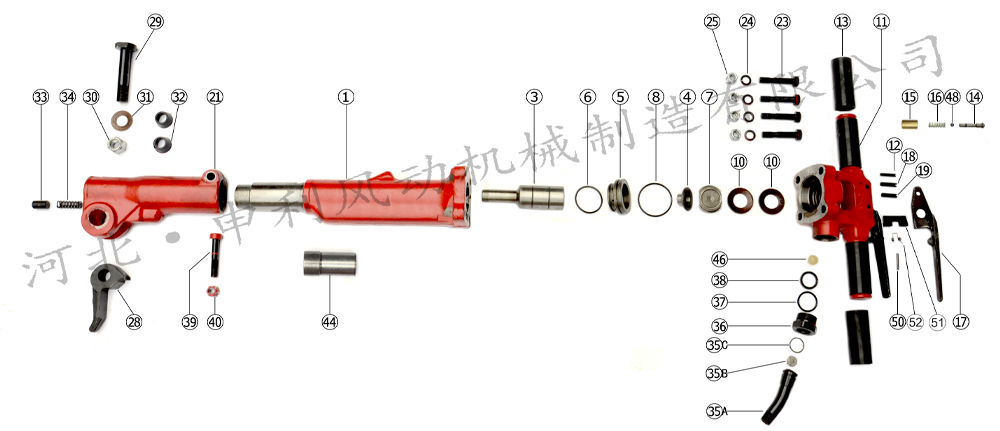

TPB-90 part of the accessories show, international common parts, factory direct sales
<NO.6
For the Goods’ Value lower than USD1000 Like 1set or 2 set. We need send it to you by Express.Please tell us your city and postcode for the courier cost.
Delivery by sea: After it was delivered to the seaport . We will tell you the shipping time and arrival time .
For the Goods’ Value more than USD 1000.Like ≥3 set. We could send it to you by sea. Please tell us your seaport for the Freight cost,In addition, we can also help you consult the shipping price
Delivery by Express to your door (DHL/TNT/Fedex/UPS etc ) or by air to your city airport . We will tell you the Express tracking number .
If you have shipping agent in china. please let your agent contact us.
Deliver it to the warehouse which you have requested . We will tell you logistic or express tracking number .
1. : Are you factory or trade company?
A: We are factory. And we have ourselves trading company.2: Warranty terms of your machine?
A: 3 months for the core components and technical support according to your needs.3: Will you provide some spare parts of the machines?
A: Yes, we have most of the spare parts in stock.
4: Which payment term can you accept?
A: 30% T/T in advanced, 70% T/T before the delivery.
5: Can you accept OEM orders?
A: Yes, we have high specialized and rich experienced team, OEM orders are highly welcome.
6: Which trade term can you accept?
A: FOB, CIF, CFR, EXW, CPT, etc.
We are one of the famous rock drilling jack hammer manufacturers in China, specializing in the production of rock drilling tools with exquisite workmanship and superior materials, manufactured in strict accordance with industrial quality standards and CE, ISO9001 quality management system certification. These drilling machines are easy to install, operate and maintain. The drilling machines are reasonably priced and easy to use. The rock drill is designed to be sturdy and durable, not easily damaged, with a full range of rock drill accessories
